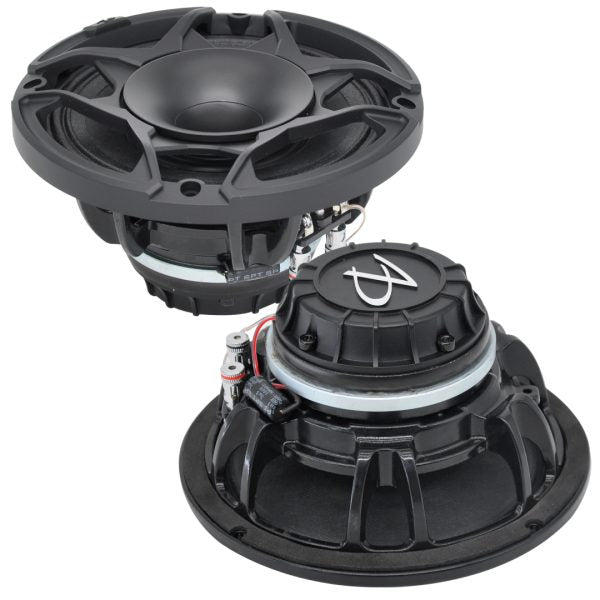

Audio Dynamics 6.5" PCX630S4

Audio Dynamics 6.5" PCX630S4

$349.00
$349.00
Sale Sold out
Shipping calculated at checkout.
  • 4 Ohm 6 ½” (173.5 mm) Pro Coaxial
  • Die Cast Aluminum Basket
  • Treated Paper Cone
  • Lightweight Cloth Surround
  • Waterproof Treated Cone Spider (covers horn gap)
  • 1.5″ (38 mm) High Temperature Midrange Voice Coil
  • High Energy N38 Neodymium Motor
  • Black Composite Grills Included
  • 1″ (25mm) High Temperature Tweeter Voice Coil
  • Built-in Tweeter Crossover
  • 200 Watts RMS power handling*
  • 96dB Midrange Sensitivity @ 1W/1m
  • 104dB Tweeter Sensitivity @ 1W/1m
  • Sold in Pairs
  • Fs	158.735 Hz
Qms	8.21
Vas	3.825 l
Cms	0.14 mm/N
Mms	7.204 g
Rms	0.872 kg/s
Dia	133 mm
Sd	138.9 cm²

Qes	0.565
Re	2.80 Ω
Le	 mH

Bl	5.969 Tm

Qts	0.528
no	2.620 %
SPL	96.2 dB




    Frame Outer Diameter	6 13/16"   (173.5mm)
Motor Outer Diameter	3 9/16"   (90mm)
Tweeter Protrusion	 13/16"    (20.32mm)
Mounting Hole Diameter	5 11/16"   (145mm)
Mounting Depth		3  5/32"  (80mm)
